Hai guys! Kali ini CEO Dirakit, Aulia Faqih Rifa'i, akan berbagi informasi tentang board Intel keluaran terbaru bernama Intel Joule.
Sebelumnya, Intel sudah memproduksi 3 produk untuk IoT (Internet of Things) yaitu Intel Galileo sebagai development board, kemudian Intel Edison, dan Genuino 101 / Arduino 101 yang dikenalkan pada akhir tahun 2015. Dan pada bulan Agustus 2016 kemarin, Intel memperkenalkan produk teranyar mereka yaitu Intel Joule dalam event Intel Developer Forum (IDF) 2016 di Moscone West Convention Center, San Francisco, California.
Lalu, board seperti apa sih Intel Joule ini? simak terus, guys!
Intel Joule terdiri dari 2 varian yaitu Intel Joule 570x dan Intel Joule 550x. Di video ini, board yang digunakan adalah Intel Joule 570x yang didesain khusus untuk makers dan penggiat Internet of Things (IoT).
Didalam box Intel Joule ini, terdapat :
- Booklet
- Sticker
- MMC
- Heatsink
- USB type C

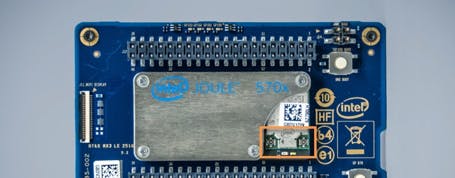

- Board Intel joule.
source www.unlocked.newegg.com

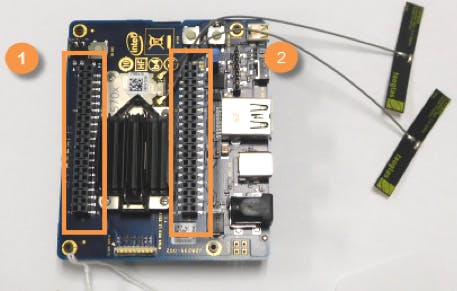

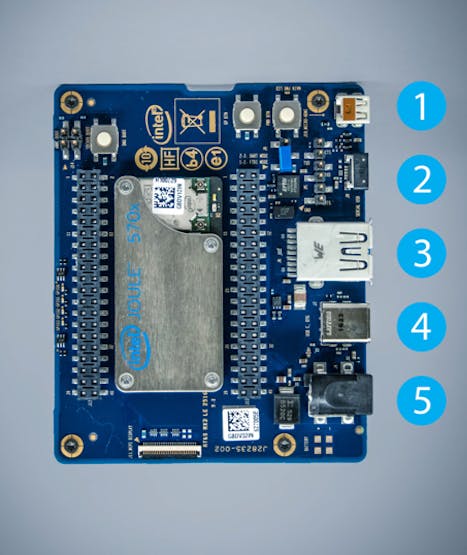

Dilihat dari ukurannya, board Intel Joule lebih kecil jika dibandingkan dengan board Edison. Berikut spesifikasi dari board Intel Joule :
Top View
Bottom View
Processor
- Quad-core Intel® Atom™ processor, 64 bit, running at 1.7 GHz 4 MB cache (2 MB per core-pair) .
Memory
- 4 GB of package-on-package (PoP) LPDDR4 RAM
- 16 GB of eMMC 5.0
Graphics
- On-chip Intel® HD Graphics 450 MHz with burst up to 650 MHz 4K video display
Wireless
- Integrated Wi-Fi* and Bluetooth* 802.11ac Wi-Fi dual band (2.4 and 5 GHz)
- Bluetooth* low energy compliant
- MHF4 connectors for external antennae
Operating System and Board Support Package
- Reference Linux* OS for IoT
- Linux 4.4 kernel
- Open-source UEFI-compliant BIOS
- I/O configuration via EEPROM
Two Board-to-Board 100-Pin Connectors (J6 and J7)
- 1 USB 3.0 On-The-Go (OTG)
- 1 USB 3.0 or PCIe (muxed)
- 2 USB 2.0
- 1 SD* card 3.0 interface
- 1 4-lane MIPI* display serial interface (DSI)
- 1 1080p HDMI 1.4b
- 1 I2S audio interface
- 5 I2C bus
- 2 SPI bus
- 2 digital microphones
- 4 Universal Asynchronous Receiver/Transmitters (UART)
- Up to 48 GPIO (with 4 PWM) 32.768 KHz and 19.2 MHz clock outputs
MIPI* Camera Connectors
- 2 4-lane MIPI* camera serial interface (CSI)
- 1 programmable clock per MIPI CSI interface connector
- 2 I2C bus
- 4 GPIO per expansion board connector
- 3 programmable voltage rails per connector.
