Door Sensor with Push Notification esp8266

Sensor untuk membeeritahu pemilik rumah jika pintu ruah terbuka atau tertutup

BeginnerFull instructions provided3 hours315
Door Sensor with Push Notification esp8266

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board
NodeMCU ESP8266 Breakout Board
×1
Reed switch
×1
LED (generic)
LED (generic)
Opsional
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Breadboard (generic)
Breadboard (generic)
×1

Software apps and online services

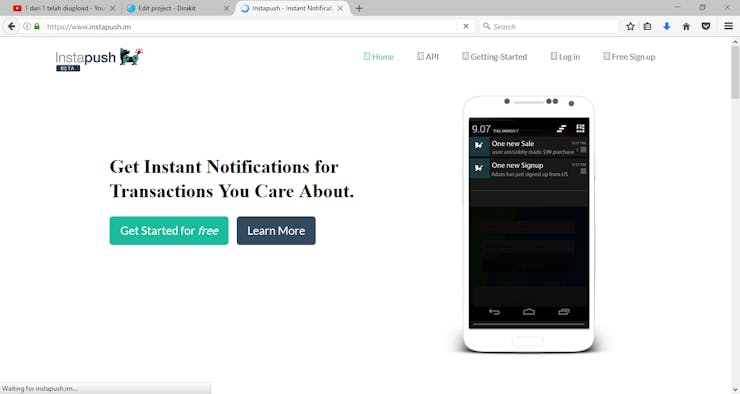

instapush
Online services untuk mengirim push notification ke smartphone kita
Arduino IDE
Arduino IDE

Story

Read more

Schematics

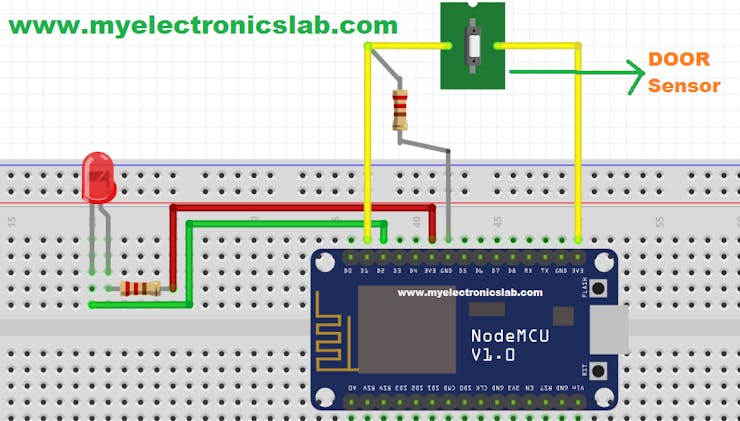

Skema Diagram Hardware

Raancang reed switch dan nodeMCU seperti gambar

Code

open.php

PHP
Gunakan untuk mengirim push notifikasi saat pintu terbuka
<?php
require("lib/instapush.php");
$ip = InstaPush::getInstance("59895e59a4c48ac7ea605ed6", "a1f65459e2c580adda4641bc5a2205a8"); //Sesuaikan dengan basic info project Anda, (Application ID, Application Secret)
$ip->track("DoorStatus", array(
                "doorstatus"=> "opened"
        ));
?>

close.php

PHP
gunakan untuk mengirim notifikasi saat pintu tertutup
<?php
require("lib/instapush.php");
$ip = InstaPush::getInstance("59895e59a4c48ac7ea605ed6", "a1f65459e2c580adda4641bc5a2205a8"); //Sesuaikan dengan basic info project Anda (Application ID, Application Secret)
$ip->track("DoorStatus", array(
                "doorstatus"=> "closed"
        ));
?>

instapush.php

PHP
library bawaan dari instapush
<?php
/**
* a PHP wrapper for Instapush API.
* Copyright (c) 2014 PushBots Inc.
*
* Portions of this class were borrowed from
* https://github.com/segmentio/analytics-php/blob/master/lib/Analytics/Consumer/Socket.php.
* Thanks for the work!
*
* WWWWWW||WWWWWW
* W W W||W W W
* ||
* ( OO )__________
* / | \
* /o o| MIT \
* \___/||_||__||_|| *
* || || || ||
* _||_|| _||_||
* (__|__|(__|__|
* (The MIT License)
*
* Copyright (c) 2013 Segment.io Inc. friends@segment.io
*
* Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
* documentation files (the 'Software'), to deal in the Software without restriction, including without limitation the
* rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to
* permit persons to whom the Software is furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
* Software.
*
* THE SOFTWARE IS PROVIDED 'AS IS', WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
* WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS
* OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR
* OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
*
* Options
* -------------
*
* <table width="100%" cellpadding="5">
* <tr>
* <th>Option</th>
* <th>Description</th>
* <th>Default</th>
* </tr>
* <tr>
* <td>ssl</td>
* <td>Enable/disable debug mode</td>
* <td>false</td>
* </tr>
* <tr>
* <td>debug</td>
* <td>Enable/Disable SSL in the request.</td>
* <td>true</td>
* </tr>
*</table>
*
* Example: Tracking an Event
* -------------
*
* $ip = InstaPush::getInstance("APPLICATION_ID", "APPLICATION_SECRET");
*
* $ip->track("signup", array(
* 		"email"=> "test@ss.cc"
* ));
*
*/

class InstaPush
{
	/**
	* @var string InstaPush Application ID
	*/
	private $appId;

	/**
	* @var string InstaPush Application secret
	*/
	private $appSecret;

	/**
	* Default options that can be overridden via the $options constructor arg
	* @var array
	*/
	private $_defaults = array(
		"host"		=> "api.instapush.im",
		"ssl"	    => false, // use ssl when available
		"debug"		=> false // enable/disable debug mode
	);

	/**
	* @var string the host to connect to (e.g. api.instapush.im)
	*/
    protected $_host;

	/**
	* @var string the protocol to use for the socket connection
	*/
	private $_protocol;

	/**
	* @var string the port to use for the socket connection
	*/
	private $_port;


	/**
	* @var resource holds the socket resource
	*/
	private $_socket;

	/**
	* @var int timeout the socket connection timeout in seconds
	*/
	private $_timeout;

	/**
	* @var bool whether or not to wait for a response
	*/
	private $_async;

	/**
	* An array of options to be used by the InstaPush library.
	* @var array
	*/
	protected $_options = array();

	/**
	* An instance of the InstaPush class (for singleton use)
	* @var InstaPush
	*/
	private static $_instance;

	const VERSION = '0.2';


	/**
	* Instantiates a new InstaPush instance.
	* @param $appId		Instapush Applciation Id.
	* @param $appSecret Instapush Application Secret.
	*/
	public function __construct($appId, $appSecret, $options = array()) {
		$this->appId = $appId;
		$this->appSecret = $appSecret;
		$options = array_merge($this->_defaults, $options);
		$this->_options = $options;
		$this->_host = $options['host'];
		$this->_timeout = array_key_exists('timeout', $options) ? $options['timeout'] : 4;
		$this->_async = array_key_exists('async', $options) && $options['async'] === false ? false : true;

		if (array_key_exists('ssl', $options) && $options['ssl'] == true) {
			$this->_protocol = "ssl";
			$this->_port = 443;
		} else {
			$this->_protocol = "tcp";
			$this->_port = 80;
		}
	}

	/**
	* Returns a singleton instance of InstaPush
	* @param $appId		Instapush Applciation Id.
	* @param $appSecret Instapush Application Secret.
	* @return InstaPush
	*/
	public static function getInstance($appId, $appSecret, $options = array()) {
		if(!isset(self::$_instance)) {
			self::$_instance = new InstaPush($appId, $appSecret, $options);
		}
		return self::$_instance;
	}

	/**
	* Returns InstaPush Application ID.
	*/
	public static function getAppId()
	{
		return self::$appId;
	}


	/**
	* Log a message to PHP's error log
	* @param $msg
	*/
	protected function _log($msg) {
		$arr = debug_backtrace();
		$class = $arr[0]['class'];
		$line = $arr[0]['line'];
		error_log ( "[ $class - line $line ] : " . $msg );
	}

	/**
	* Returns true if in debug mode, false if in production mode
	* @return bool
	*/
	protected function _debug() {
		return array_key_exists("debug", $this->_options) && $this->_options["debug"] == true;
	}

	/**
	* Track an event.
	* @param string $event	Event title e.g. registration, subscription, fatal error..etc
	* @param array $trackers  What to track for that event.
	*/
	public function track($event, $trackers) {
		$this->event['event'] = $event;
		foreach ($trackers as $tracker => $value) {
			$this->event[$tracker] = $value;
		}
		$Push = $this->_consume();
		return $Push;
	}

	/**
	* Attempt to open a new socket connection, cache it, and return the resource
	* @param bool $retry
	* @return bool|resource
	*/
	private function _createSocket($retry = true) {
		try {
			$socket = fsockopen($this->_protocol . "://" . $this->_host, $this->_port, $err_no, $err_msg, $this->_timeout);

			if ($this->_debug()) {
				$this->_log("Opening socket connection to " . $this->_protocol . "://" . $this->_host . ":" . $this->_port);
			}

			if ($err_no != 0) {
				$this->_handleError($err_no, $err_msg);
				return $retry == true ? $this->_createSocket(false) : false;
			} else {
				// cache the socket
				$this->_socket = $socket;
				return $socket;
			}

		} catch (Exception $e) {
			$this->_handleError($e->getCode(), $e->getMessage());
			return $retry == true ? $this->_createSocket(false) : false;
		}
	}


	/**
	* Attempt to close and dereference a socket resource
	*/
	private function _destroySocket() {
		$socket = $this->_socket;
		$this->_socket = null;
		fclose($socket);
	}

	/**
	* Return cached socket if open or create a new socket
	* @return bool|resource
	*/
	private function _getSocket() {
		if(is_resource($this->_socket)) {

			if ($this->_debug()) {
				$this->_log("Using existing socket");
			}

			return $this->_socket;
		} else {

			if ($this->_debug()) {
				$this->_log("Creating new socket at ".time());
			}

			return $this->_createSocket();
		}
	}

	/**
	* Write $data through the given $socket
	* @param $socket
	* @param $data
	* @param bool $retry
	* @return bool
	*/
	private function _write($socket, $data, $retry = true) {

		$bytes_sent = 0;
		$bytes_total = strlen($data);
		$socket_closed = false;
		$success = true;
		$max_bytes_per_write = 8192;

		// if we have no data to write just return true
		if ($bytes_total == 0) {
			return true;
		}

		// try to write the data
		while (!$socket_closed && $bytes_sent < $bytes_total) {

			try {
				$bytes = fwrite($socket, $data, $max_bytes_per_write);

				if ($this->_debug()) {
					$this->_log("Socket wrote ".$bytes." bytes");
				}

				// if we actually wrote data, then remove the written portion from $data left to write
				if ($bytes > 0) {
					$data = substr($data, $max_bytes_per_write);
				}

			} catch (Exception $e) {
				$this->_handleError($e->getCode(), $e->getMessage());
				$socket_closed = true;
			}

			if (isset($bytes) && $bytes) {
				$bytes_sent += $bytes;
			} else {
				$socket_closed = true;
			}
		}

		// create a new socket if the current one is closed and retry the message
		if ($socket_closed) {

			$this->_destroySocket();

			if ($retry) {
				if ($this->_debug()) {
					$this->_log("Retrying socket write...");
				}
				$socket = $this->_getSocket();
				if ($socket) return $this->_write($socket, $data, false);
			}

			return false;
		}


		// only wait for the response in debug mode or if we explicitly want to be synchronous
		if ($this->_debug() || !$this->_async) {
			//@TODO Handle Server response

		}

		return $success;
	}

	/**
	* Handles errors that occur in a consumer
	* @param $code
	* @param $msg
	*/
	protected function _handleError($code, $msg) {
		if (isset($this->_options['error_callback'])) {
			$handler = $this->_options['error_callback'];
			$handler($code, $msg);
		}

		if ($this->_debug()) {
			$arr = debug_backtrace();
			$class = get_class($arr[0]['object']);
			$line = $arr[0]['line'];
			error_log ( "[ $class - line $line ] : " . print_r($msg, true) );
		}
	}

	/**
	* Consumes messages and writes them to Instapush API using a socket
	*/
	private function _consume(){

		$socket = $this->_getSocket();

		if (!is_resource($socket)) {
			return false;
		}

		// Request POST String
		foreach ($this->event as $key => &$val) {
			if (is_array($val)) $val = implode(',', $val);
			$post_params[] = $key.'='.urlencode($val);
		}

		$data = implode('&', $post_params);


		$body = "POST /php HTTP/1.1\r\n";
        $body.= "Host: " . $this->_host . "\r\n";
		$body.= "X-INSTAPUSH-APPID: " . $this->appId ."\r\n";
		$body.= "X-INSTAPUSH-APPSECRET: " . $this->appSecret ."\r\n";
		$body.= "Content-Type: application/x-www-form-urlencoded\r\n";
		$body.= "Content-Length: ".strlen($data)."\r\n";
		$body.= "Connection: Close\r\n\r\n";
		$body.= $data;

		return $this->_write($socket, $body);
	}

}

coding pada arduino IDE

Arduino
digunakan untuk mendeteksi saat pintu terbuka / tertutup
#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <EEPROM.h>

const char* ssid = "Wi-fe";
const char* password = "nggakada";
const int DoorGpioPin = 5; // D1 of Node MCU
const int ledGpioPin =4;
int doorState=0;
int ledState=0;
#define closed 0
#define opened 1

const char* host = "192.168.198.10"; //sesuaikan dengan ip localhost
void setup() {
  Serial.begin(115200);
  delay(10);

  // prepare GPIO2
  pinMode(DoorGpioPin, INPUT);
  pinMode(ledGpioPin, OUTPUT);


  // Connect to WiFi network
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Start the server
  Serial.println("Server started");

  // Print the IP address
  Serial.println(WiFi.localIP());

}
void loop() {
 // While pin 12 is HIGH (not activated)
 //   yield(); // Do (almost) nothing -- yield to allow ESP8266 background functions
if( digitalRead(DoorGpioPin)==HIGH && doorState==opened){ // Print button pressed message.
   SendDoorCloseNotification();

   Serial.println("Close");
   doorState=closed;
   ledState=1;//on
   digitalWrite(ledGpioPin, ledState);
}
yield();
if( digitalRead(DoorGpioPin)==LOW && doorState==closed){
   SendDoorOpenNotification();
   Serial.println("Open");
   doorState=opened;

   ledState=0; //off
   digitalWrite(ledGpioPin, ledState);
}
yield();
}

void SendDoorOpenNotification()
{
 WiFiClient client1;
   const int httpPort = 80;
   if (!client1.connect(host, httpPort)) {
    Serial.println("connection failed");
    return;
  }
  String url = "/push/"; //sesuaikan dengan folder Anda
  url += "open.php";

  Serial.print("Requesting URL: ");
  Serial.println(url);
   client1.print(String("GET ") + url + " HTTP/1.1\r\n" +
               "Host: " + host + "\r\n" +
               "Connection: close\r\n\r\n");
   delay(10);
   while(client1.available()){

    String line = client1.readStringUntil('\r');
    Serial.print(line);
}}



void SendDoorCloseNotification()
{
 WiFiClient client1;
   const int httpPort = 80;
   if (!client1.connect(host, httpPort)) {
    Serial.println("connection failed");
    return;
  }
  String url = "/push/"; //sesuaikan dengan nama folder Anda
  url += "close.php";

  Serial.print("Requesting URL: ");
  Serial.println(url);
   client1.print(String("GET ") + url + " HTTP/1.1\r\n" +
               "Host: " + host + "\r\n" +
               "Connection: close\r\n\r\n");
   delay(10);
   while(client1.available()){

    String line = client1.readStringUntil('\r');
    Serial.print(line);
}}

Credits

Ajie Dwihastadi

Ajie Dwihastadi

0 projects • 0 followers
Mahasiswa Teknik Informatika UIN SUNAN KALIJAGA 2015 NIM : 15650025

Comments

Add projectSign up / Login
