Solar Tracker

Solar Tracking System Using Arduino

EasyWork in progress2 hours7,613

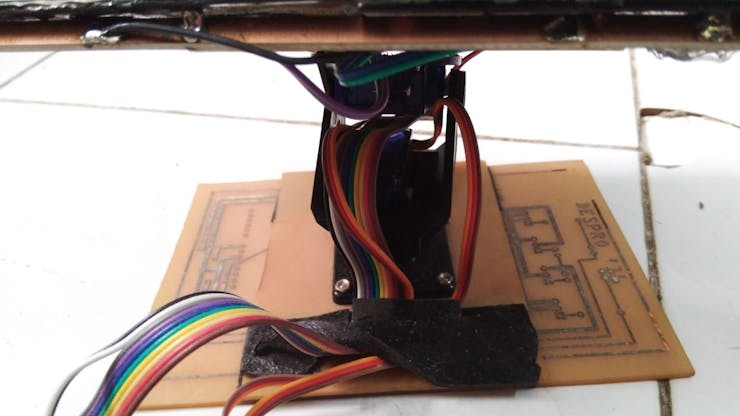

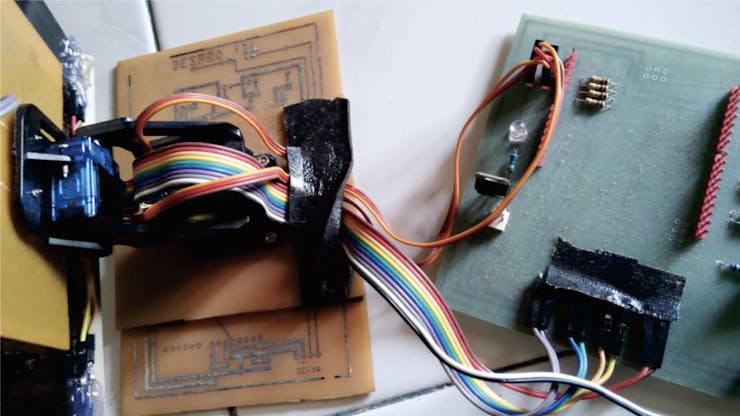

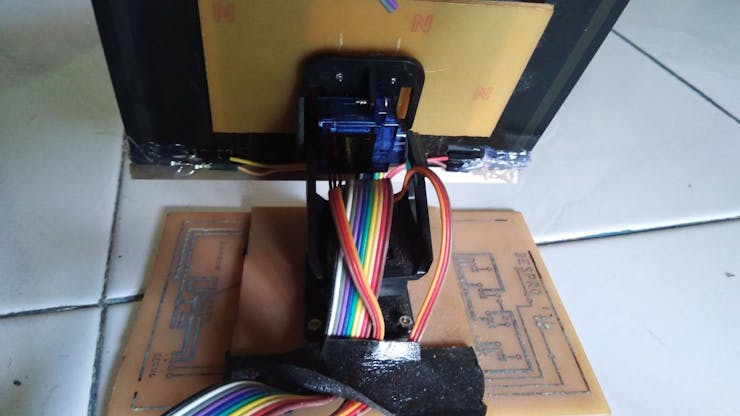

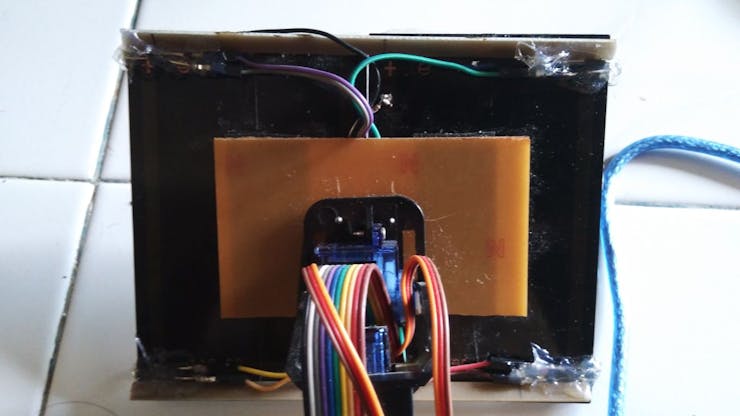

Solar Tracker

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Resistor 10k ohm
Resistor 10k ohm
×8
Jumper wires (generic)
Jumper wires (generic)
×12
Motor Servo
×2
LDR
×5
Papan
×1

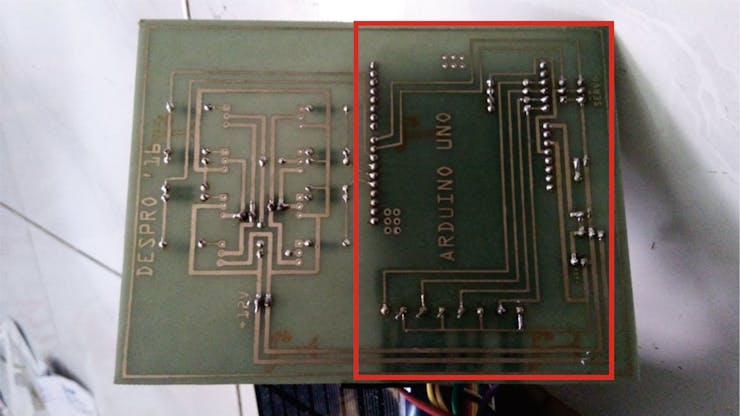

PCB
×1
Penyangga
×1

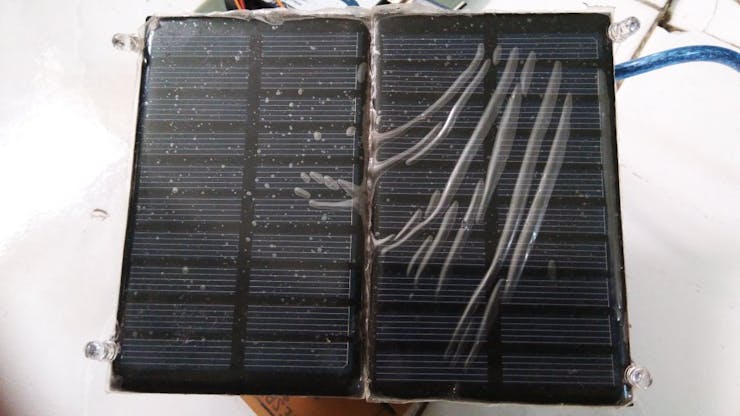

Panel Surya
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Lem Pistol

Story

Read more

Schematics

Circuit Diagram

Fdwxhh8gplj13wt medium ykpjmjncei

Code

Solar Tracking System

C/C++
#include <Servo.h> // include Servo library
// 180 horizontal MAX
Servo horizontal; // horizontal servo
int servoh = 180; // 90; // stand horizontal servo
int servohLimitHigh = 175;
int servohLimitLow = 5;
// 65 degrees MAX
Servo vertical; // vertical servo
int servov = 45; // 90; // stand vertical servo
int servovLimitHigh = 60;
int servovLimitLow = 1;
// LDR pin connections
// name = analogpin;
int ldrlt = 0; //LDR top left - BOTTOM LEFT <--- BDG
int ldrrt = 1; //LDR top rigt - BOTTOM RIGHT
int ldrld = 2; //LDR down left - TOP LEFT
int ldrrd = 3; //ldr down rigt - TOP RIGHT
void setup(){
Serial.begin(9600);
horizontal.attach(8);
vertical.attach(9);
horizontal.write(180);
vertical.write(45);
delay(3000);
}
void loop() {
int lt = analogRead(ldrlt); // top left
int rt = analogRead(ldrrt); // top right
int ld = analogRead(ldrld); // down left
int rd = analogRead(ldrrd); // down right
int dtime = 10; int tol = 90; // dtime=diffirence time, tol=toleransi
int avt = (lt + rt) / 2; // average value top
int avd = (ld + rd) / 2; // average value down
int avl = (lt + ld) / 2; // average value left
int avr = (rt + rd) / 2; // average value right
int dvert = avt - avd; // check the diffirence of up and down
int dhoriz = avl - avr;// check the diffirence og left and rigt
Serial.print(avt);
Serial.print(" ");
Serial.print(avd);
Serial.print(" ");
Serial.print(avl);
Serial.print(" ");
Serial.print(avr);
Serial.print(" ");
Serial.print(dtime);
Serial.print(" ");
Serial.print(tol);
Serial.println(" ");
if (-1*tol > dvert || dvert > tol) // check if the diffirence is in the
tolerance else change vertical angle
 {
 if (avt > avd)
 {
 servov = ++servov;
 if (servov > servovLimitHigh)
 {
 servov = servovLimitHigh;
 }
 }
 else if (avt < avd)
 {
 servov= --servov;
 if (servov < servovLimitLow)
 {
 servov = servovLimitLow;
 }
 }
 vertical.write(servov);
 }
if (-1*tol > dhoriz || dhoriz > tol) // check if the diffirence is in the
tolerance else change horizontal angle
 {
 if (avl > avr)
 {
 servoh = --servoh;
 if (servoh < servohLimitLow)
 {
 servoh = servohLimitLow;
 }
 }
 else if (avl < avr)
 {
 servoh = ++servoh;
 if (servoh > servohLimitHigh)
 {
 servoh = servohLimitHigh;
 }
 }
 else if (avl = avr)
 {
 delay(5000);
 }
 horizontal.write(servoh);
 }
 Serial.print(" ");
 Serial.print(servoh);
 Serial.print(" ");
 Serial.print(servov);
 Serial.print(" ");
 delay(dtime);
}
